BT Tyro Stacker 1t with Lithium-ion

Product features
FAQ
Easy to use
Specifications

Easy to manoeuvre in small spaces
The maintenance-free Lithium-ion is easy to use and charge, for high truck availability
Clear view of the forks
High durability and resistance to impacts
Pin code for access control

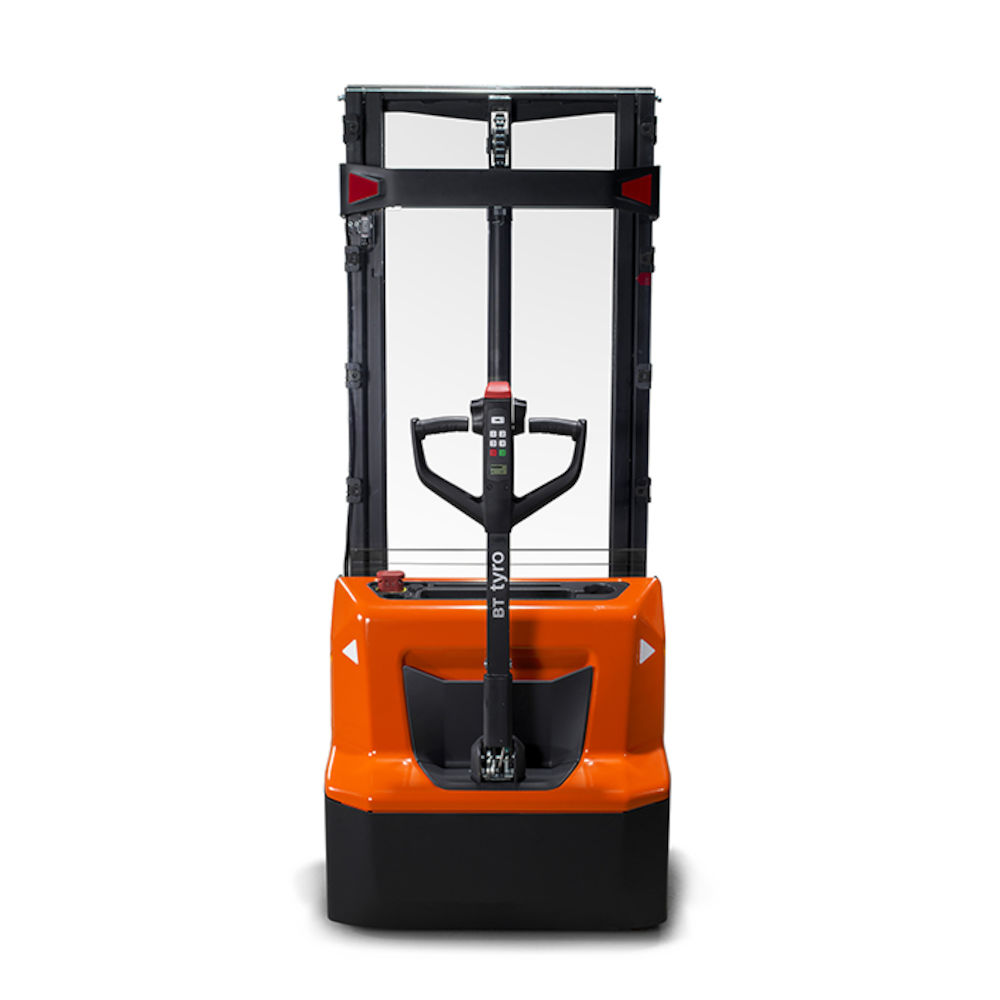

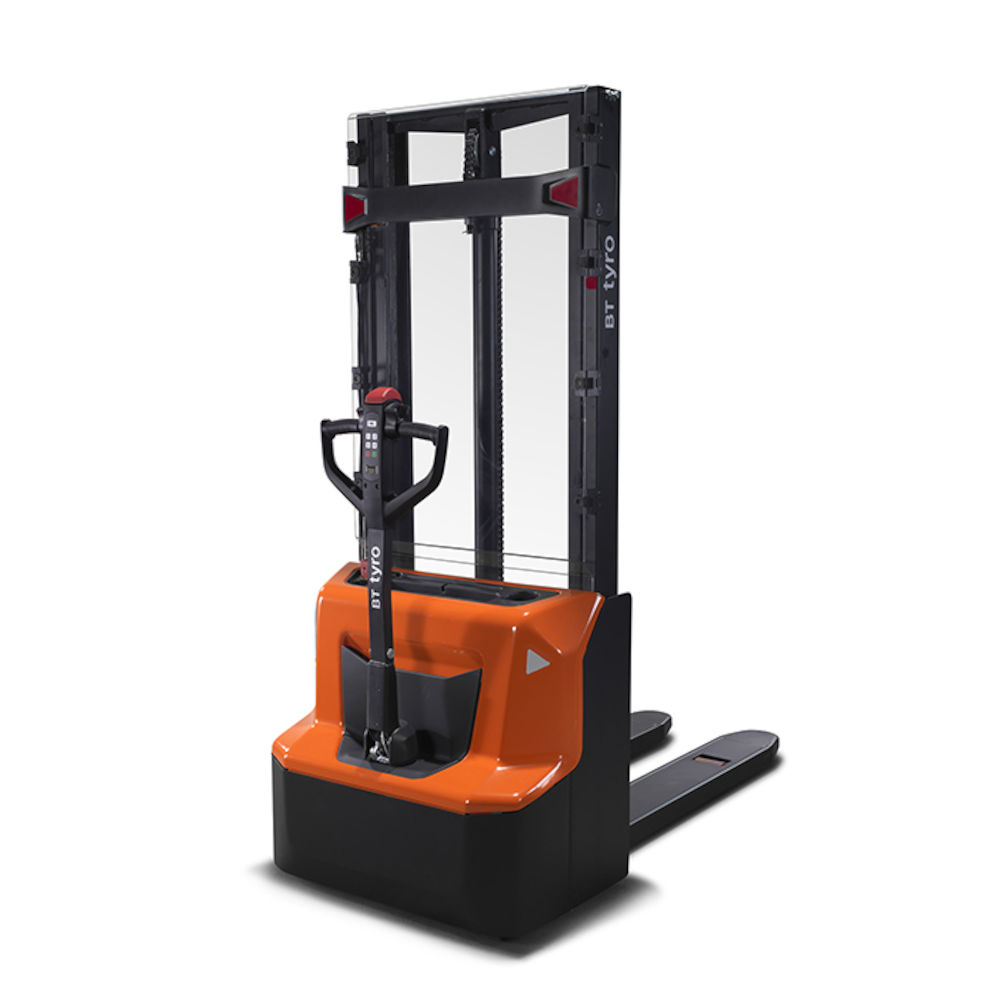

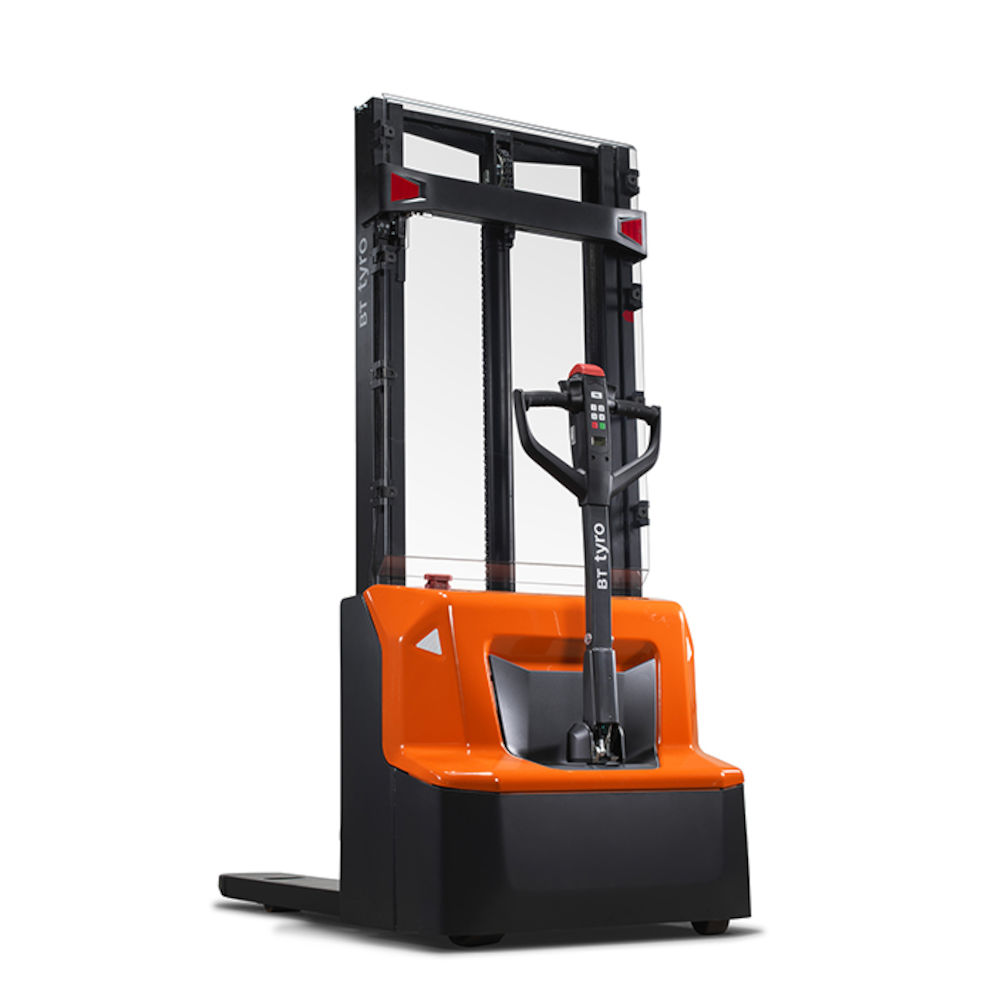

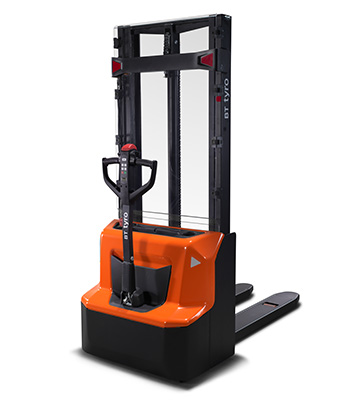

The BT Tyro SHE100 is the new entry-level stacker model, perfect for light stacking applications. It can transport and lift loads up to 1000 kg. The SHE100 is available with li-ion technology for energy efficiency. It combines the features of a powered stacker truck with the small size of a manual stacker. The BT Tyro Stacker is the perfect solution for manual and semi-powered stacker truck users who want to step up to a fully powered stacker.

Excellent manoeuvrability

The 180° steering angle enables smooth and easy manoeuvring and ensures safe handling.

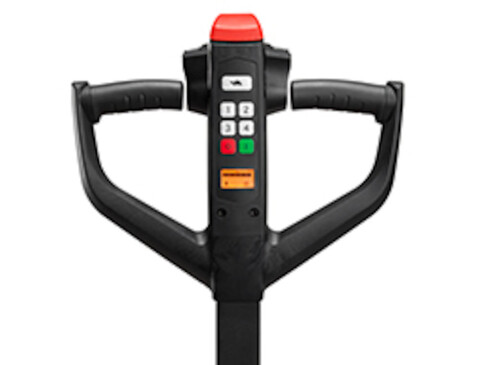

Simple and intuitive handle

The truck handle is equipped with PIN code access, turtle mode and safety button.

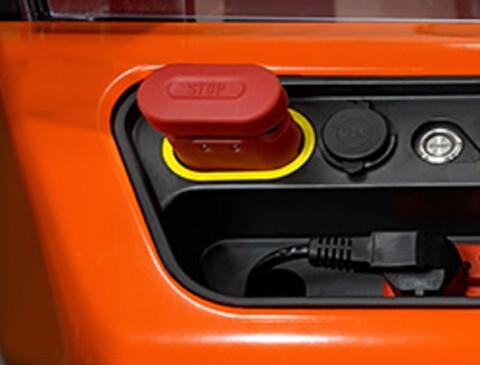

Li-ion battery

Maintenance-free lithium-ion battery, easy to use and charge, for increased productivity.

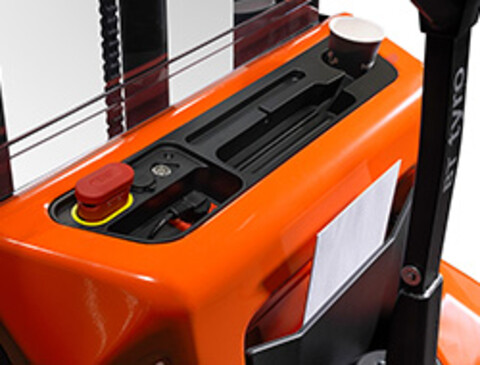

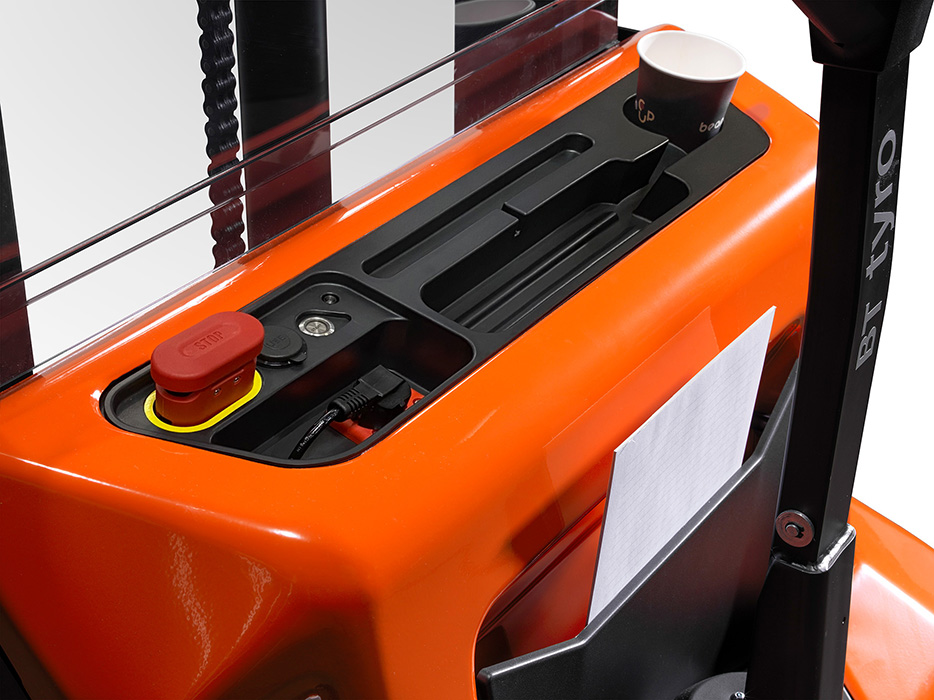

Storage compartments

The top panel has space for small objects and place for a cup. Big pocket for documents is available at the front of main cover.

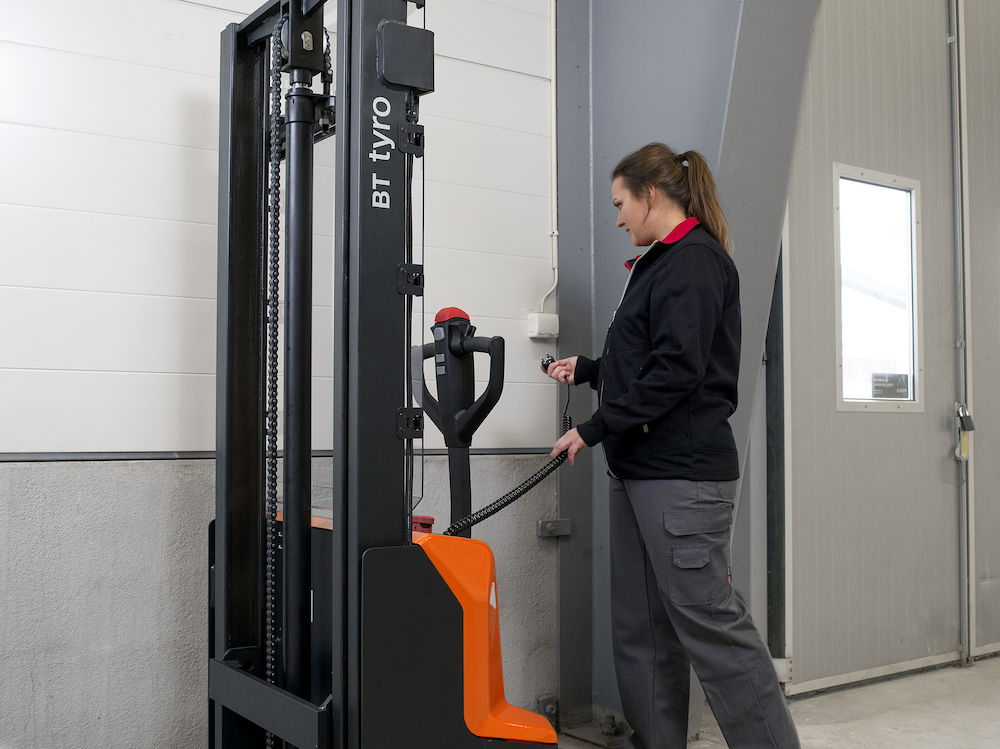

Easy charging

With the 60Ah Li-Ion battery and the 25A charger the charging of the battery takes about 2.5 hours. The charger is built into the truck for easy connection to a power socket.

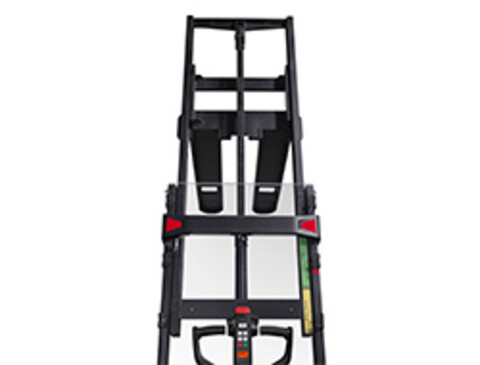

Lift height and capacity information

The operator can easily read the fork height and maximum residual capacity from the mast plate.

Technical specification

Integrated Li-ion battery and charger with wall socket connection

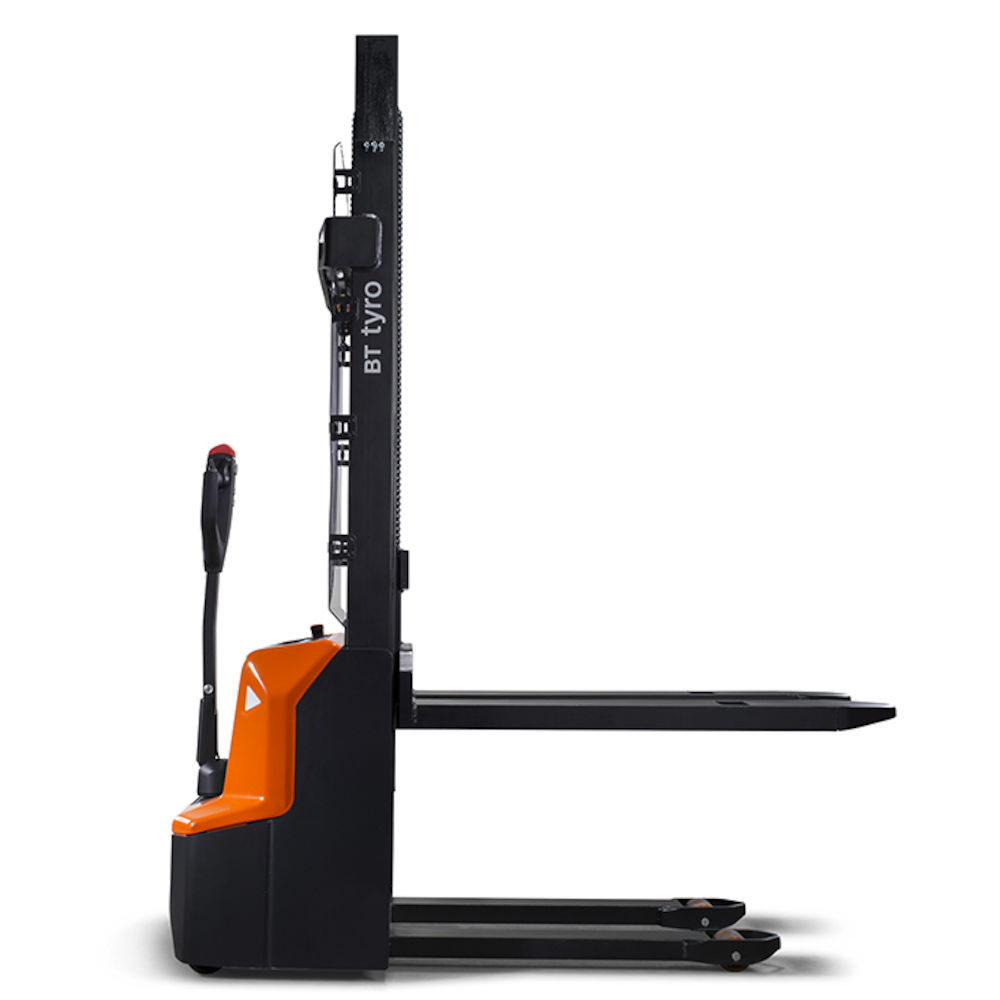

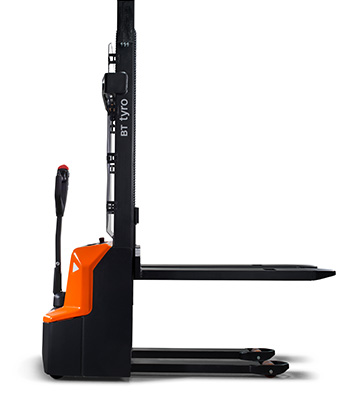

Compact dimensions (truck length: 560 mm, chassis height: 770 mm)
Maximum lift height: 3600 mm

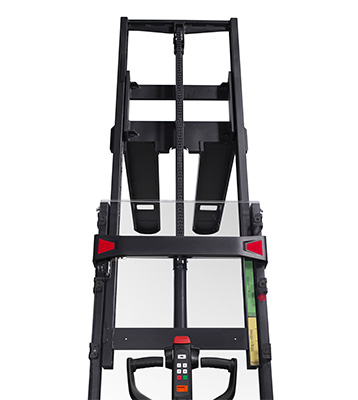

See-through mast visibility - excellent visibility over forks
Low energy consumption thanks to low weight and Li-Ion technology
Central steering arm
Ergonomic and intuitive tiller arm control including turtle mode and safety button
Informative display on truck status, hour meter, error codes and battery status
PIN code start-up
Reduced speed when cornering
Automatic switch-off
Storage compartments

For which applications is the entry-level BT Tyro stacker truck suitable?

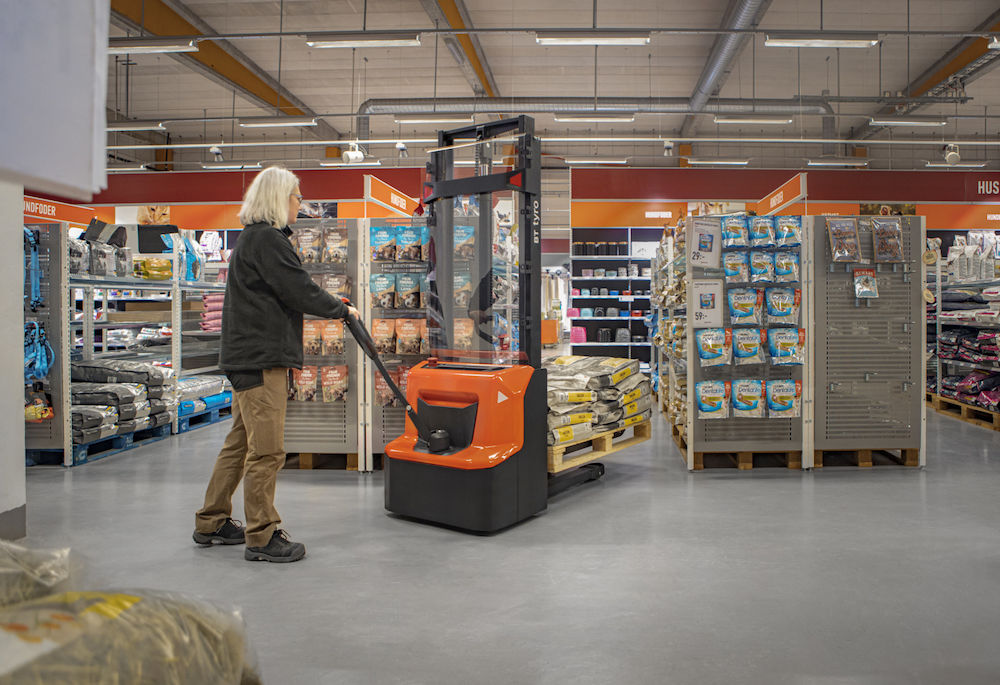

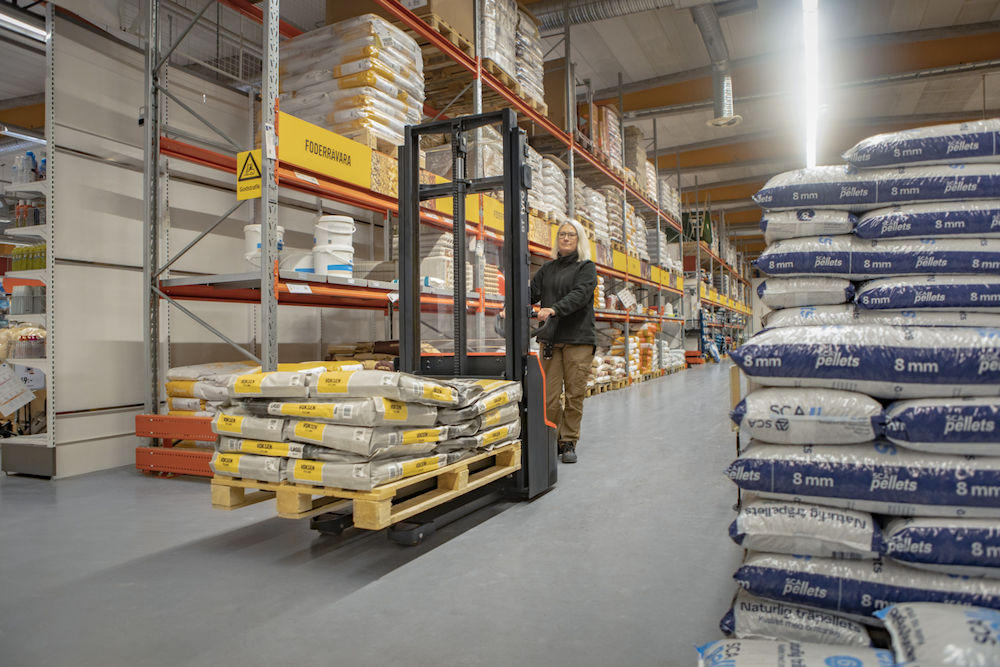

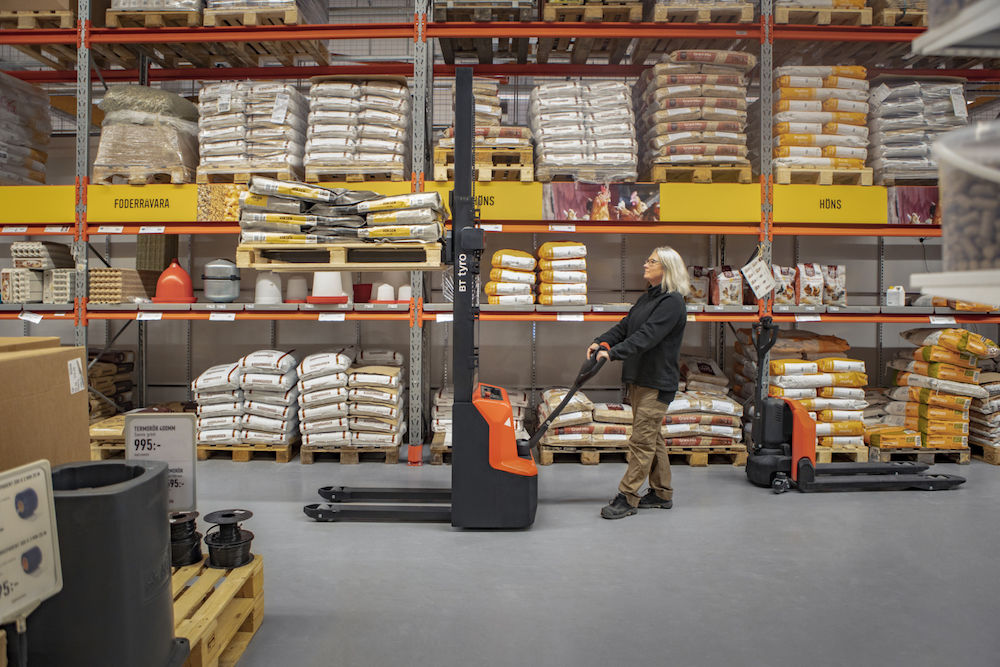

Our entry-level stackers can support occasional pallet stacking, transports of lighter goods and ergonomic order picking. Ideal for low-intensity applications where productivity is not a priority for the operation such as in DIY stores for replenishing and working tables in stores or production.

Are the BT Tyro stackers suitable for use on gradients?

The entry level stacker SHE100 is suited for even floors.

How to charge the battery on these entry-level stacker range?

The BT Tyro SHE100 comes with a built-in battery and charger that is easy to manage via a wall socket connector which means the charging can be done anywhere. A battery management system (BMS) is included to control charge/discharge, temperatures, short circuits etc for reliable use.

How long does the battery on the BT Tyro stacker model last?

All models in the BT Tyro range come with li-ion technology. Depending on model and application the battery can last a different number of hours and needs a few hours to charge.

SHE100: Operating time: 2.5 hours continuous use and charging time: 2.5 hours

When should you consider stepping up from manual to light-duty powered trucks?

When you want to:

boost productivity thanks to effortless manoeuvrability
improve operator ergonomics thanks to reduced strain
increase safety thanks to the possibility to brake in every situation
have more flexibility, now and in the future

Can the light-duty BT Tyro stacker truck be used in cold applications?

No, the recommended temperature range is between +5°C and +40°C.

What warranty is offered on the BT Tyro range?

We offer a 12-month/1000 working hours (whichever comes first) warranty for BT Tyro units sold in your market, provided that all the maintenance conditions have been duly followed by the customer and performed by trained technicians, as detailed in the operator manual.
