Built for safety, designed for confidence
The option "Operator Detection Assist (ODA)" adds an extra layer of protection for operators working with pedestrian pallet trucks or stackers.
Using advanced sensor technology, ODA continuously monitors the operator’s position to help prevent accidents and ensure smoother, safer operation.
Key benefits
- Reduced risk of collisions
- Fewer misuses of the truck during the operations
- Consistent, controlled handling in any situation
The result? Fewer safety risks for the operators without slowing down productivity.
Contact us for more information.
The Operator Detection Assist (ODA) system from Toyota Material Handling thinks ahead to protect the operator.
When the ODA sensors detect people in front of the truck, it will slow down or stop.
Zones
Red = stop
Dark green = speed reduction
Light green = acceleration reduction
Specifications
Product features
- Elevating support arms for use on uneven floors and double pallet handling
- 5-point chassis with centered steering arm and drive wheel for more control and visibility
- Clear view of the forks
- Automatic height adjustment (option)
- Smart truck: easy to connect, monitor & improve

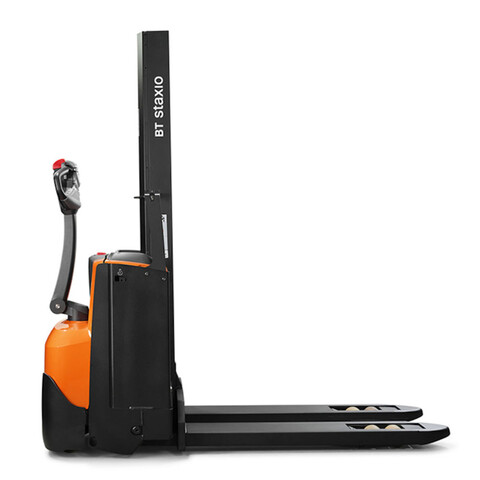

Our BT Staxio SWE080L with 800 kg load capacity and is ideal to be used in shops. The monomast offers excellent visibility and lets you use the forks as a worktable. When combined with the Automatic Height Adjustment option, item picking can always be done at the best ergonomic working height.

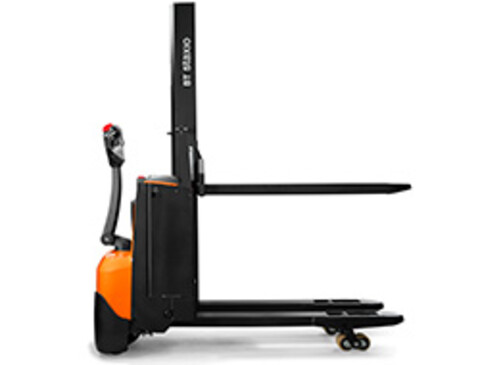

Low height mast
The monomast with lift height up to 1580 mm makes this truck perfect for use in shops. With the forks elevated to worktable height, this becomes an ergonomic tool making any job easy and safe.

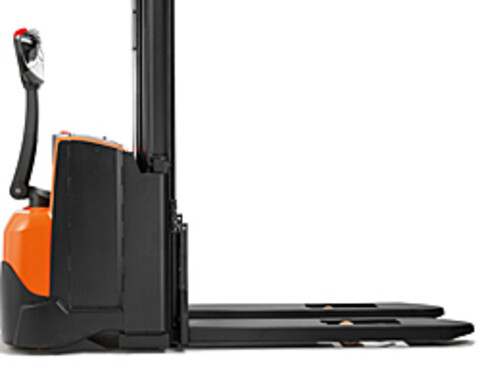

Excellent stability
BT’s unique 5-point chassis provides excellent stability and control.
Click-2-Creep
The Click-2-Creep feature simply lets you double-click the control lever to set the truck to creep mode, giving the operator safe control in tight situations.
Li-ion technology (option)
Based on Toyota's own high-density lithium-ion technology, this battery solution ensures high levels of performance, and maximises energy efficiency whilst reducing energy costs and CO2 emissions.
Easy and safe handling
The ergonomic control handle, with emergency ‘belly button’ to avoid trapping, briefly reverses the truck if depressed. The steering arm is placed centrally, allowing even turning in both directions and a consistently small turning radius.
Smart truck
Smart trucks come with telematics hardware as standard. These trucks can easily be connected with I_Site from Toyota, offering insights into battery management, geolocation, shocks, and much more.Technical specification
The SWE080L comes with elevating support arms to allow use on uneven floors or ramps.
- Lift heights up to 1.58 metres
- Travel speed up to 6 km/h
- Compact dimensions
- In-vehicle charging possibility
- BT Powerdrive System
- Castorlink System
- Fingertip controls
- Electronic braking system
- Electronic speed control
- Operator safety
- Storage compartments
- Automatic switch-off
- Click-2-creep
- Programmable performance
- Easy access for maintenance
- Smart truck with telematics hardware
Like all Toyota trucks, the BT Staxio trucks are built according to the Toyota Production System, ensuring the highest levels of quality, durability and reliability.
